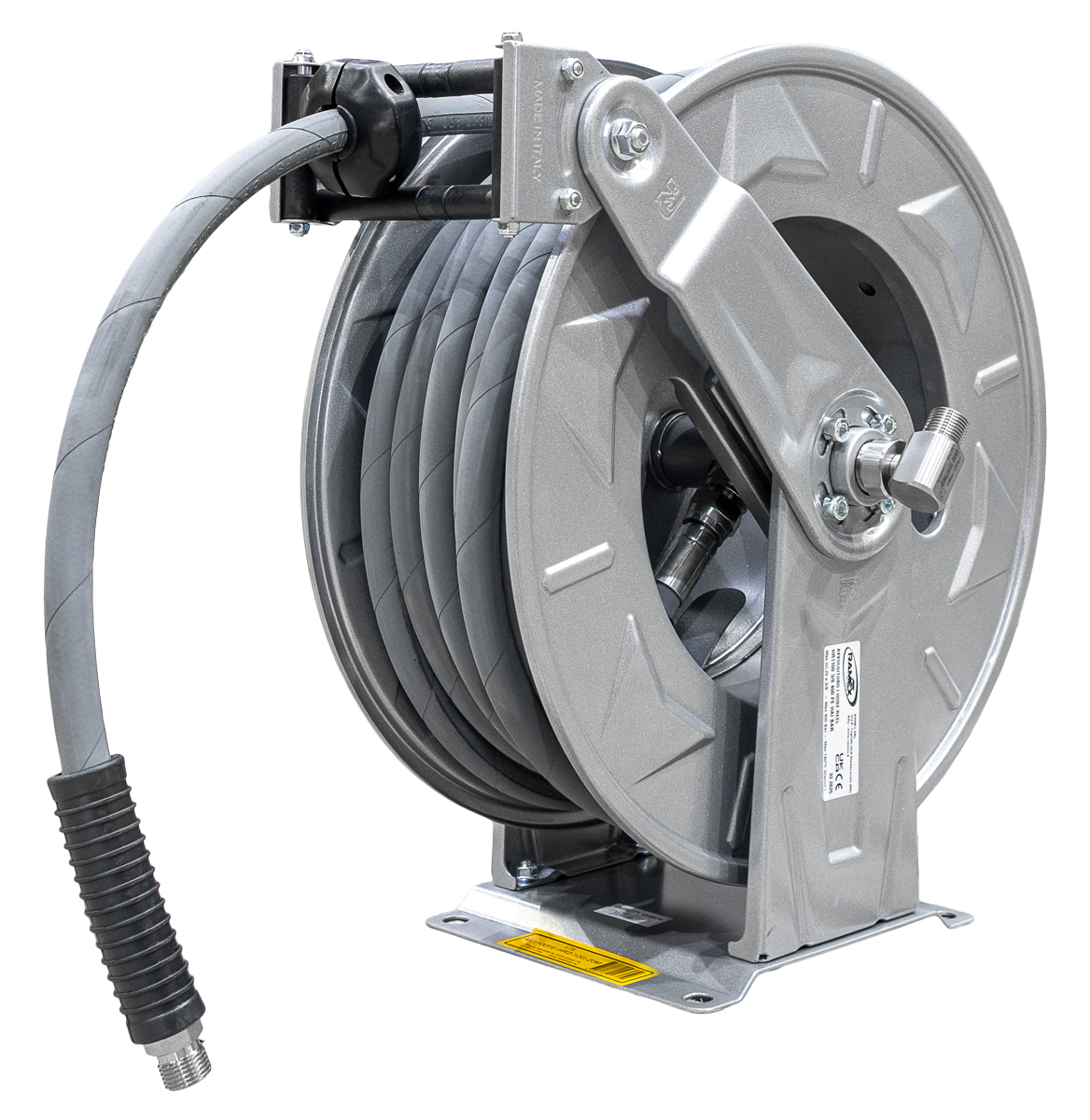

BAR Hose Reel — AV1100FE — Ramex

Features

• Our Italian Industry series has loads of configurations to suit every need
• Fully manufactured in Italy
• Stainless swivel
• Safety brake and closed plate options for high OH&S applications
• The hose must be fully retracted when the reel is in use
• * After fitting the hose, turn the spring this many times to charge it. Do not turn more or you will jam the spring
• HOSE NOT INCLUDED

Specifications

• Reel Style: Standard Bent Arm
• Capacity: 20 m of 1/4″, 3/8″ or 1/2″ hose
• Pressure: 5,800 PSI
• Inlet / Outlet: 3/8″ F BSP x 1/2″ M BSP
• Temperature: 90°C
• Material: Zinc Steel
• Spring Turns*: 2
• Dimensions: H21 x W56 x D43
